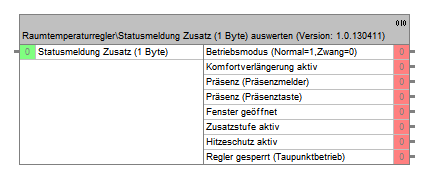

Evaluating room temperature controller status message add-on (1-byte)

The module is used in connection with the Gira room temperature controllers to evaluate the object "Controller status" in the configuration status controller = controller in general.

The following information is output at the outputs:

Comfort mode active
Standby mode active
Night mode active
Frost/heat protection
Controller locked out
Operating mode heating/cooling
Controller inactive (dead zone)
Frost alarm (room temperature less than or equal to +5°C)
Operating mode as value (KNX-compliant or adapted to HS data type RTC status)

Hard- und Softwareversionen: Gira HomeServer 3 from version 2.8 / Gira HomeServer 4 from version 2.10

Gira Hardware: 1x 052900 Gira HomeServer 4 KNX

Bekannte Ausnahmen: The availability of individual information is based on the parameterisation of the room temperature controller in the ETS. The module only evaluates the status telegrams and makes the information available at the outputs.

Realisierungsdauer: 0.5 hr.
